Right Angle Barrier Type Terminal Block Brass PBT 7.62mm 300v 15A
Detailed product Description:
Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black.
And we can also provide other colors as per customer's request, such as Grey, Green, Blue and Yellow etc.
Applications:
Usually our customer wil used our terminal blocks in the fileds of PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

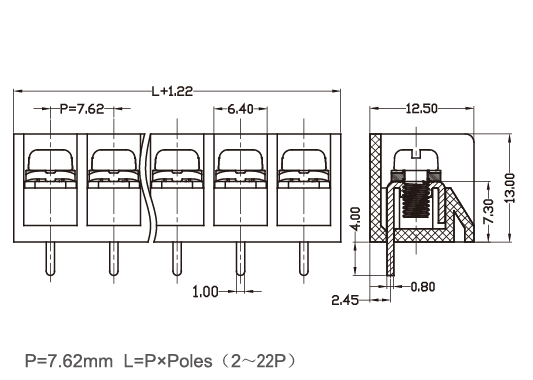

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 15 | | 300 / 10 |
| Wire Range AWG | 16-24 | | 16-24 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 17 | 320 / 17 | 400 / 17 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 1.5 |
| Material | |
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Terminal / Plating | Brass /Tin Plated |
| Screw / Plating | Steel / Zinc plated |
| Other Data | |
| PCB Hole Diameter mm | φ1.5 |
| Stripping Length mm | 7-8 |
| Screw / Torque / lbf.in | M 3 / 5-7 |
Competitive Advantage:
We can provide stable good quality products with competitiv price.
We have 12 years of experience in designing, manufacturing and marketing terminal blocks.
We have 10 main series and more than 1000 models for selection.
We can provide good service to our customers.
