PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

Quick Detail

Pitch: 5.00mm

Poles: 2P-24P

Voltage/ Current: 300V/10A

Wire range: 12-26 AWG

Materials: Plastic housing is PA66 (UL94 V-0)

Operating temperature: -40℃~+105℃

Clamp cage and terminal is high quality brass or copper

Screw is high-quality steel M3

Spec.

1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.

2. It is consisted of plastic housing, clamp cage, terminal and screw.

3. It can be stacked to be different poles via 2P and 3P,

4. Wire inlet Direction: 45 90 180degree

4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel

Parameter and Drawing Specifications:

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters,

Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

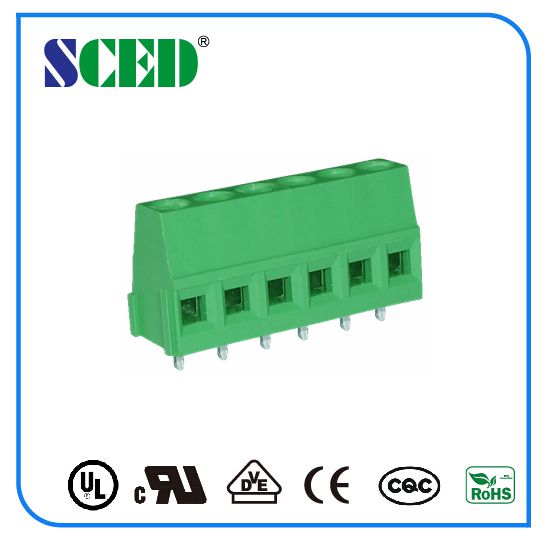

Drawing Photo and Product photo:

pcb terminal block connectors

pcb mount terminal block
