14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Name: 1450mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
Brand: SCED
Price: 1 USD

Wholesale 14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector from china suppliers

Brand Name : SCED

Model Number : TR60-05

Certification : UL, CE, CQC

Place of Origin : Shenzhen, China

MOQ : 200

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Pitch : 20.00mm

Poles : 4P

Voltage : 600V

Current : 65A

Housing Material : PA66

Conduction Board : Cooper/Nickel Plated

Color : Black

Item : Feed through terminal connector, high current terminal, panel mount terminal block

Contact Now

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Data spec.

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600/65	600/65
Wire Range AWG	3-20	3-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 76	1000 / 76	1000 / 76
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm2	25
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board Plating	Cooper/Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	14-16
Screw / Torque / lbf.in	M 5 / 14 - 18

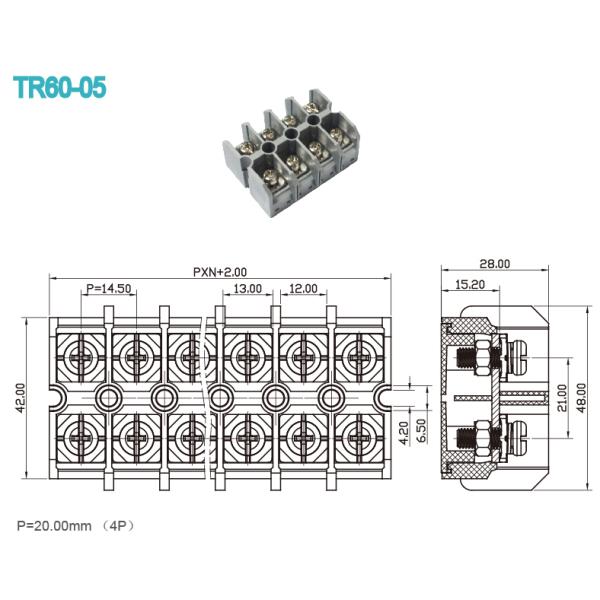

Drawing Specifications:

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Drawing Photo

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector

Factory Photo:

14.50mm Pitch Panel Feed Through High Current Terminal Block 4P Power Screw Connector
