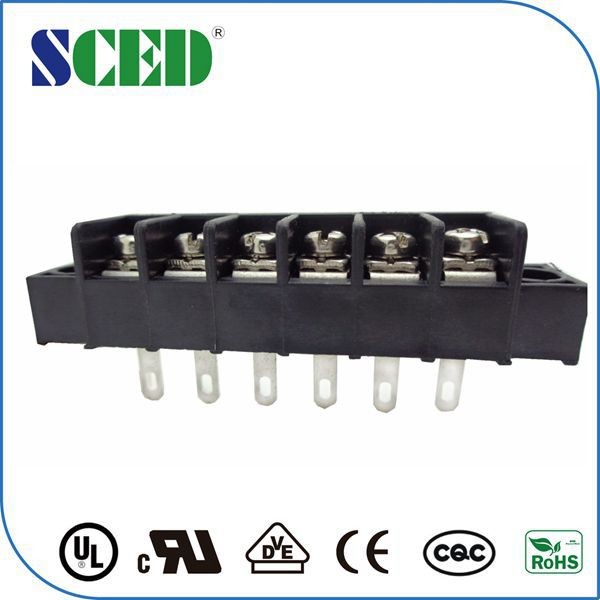

Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector

Name: Flange Small Terminal Blocks 762mm 14 22 AWG Power Connector
Brand: SCED
Price: 1 USD

Wholesale Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector from china suppliers

Brand Name : SCED

Model Number : TB762-02F-D3

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500PCS

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Wire Inlet : Right angle wire inlet

Color : Black

Number of Contacts : 2P-22P

Pitch : 7.62mm

Rated Current : 10A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Rate Voltage/ Current : 300V/10A

Contact Now

With Flange Barrier Terminal Block Connector 7.62mm 14-22 AWG Power Connector

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	1.2x3.4
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the
color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

How to order:

Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector

Flange Small Terminal Blocks 7.62mm 14 - 22 AWG Power Connector
