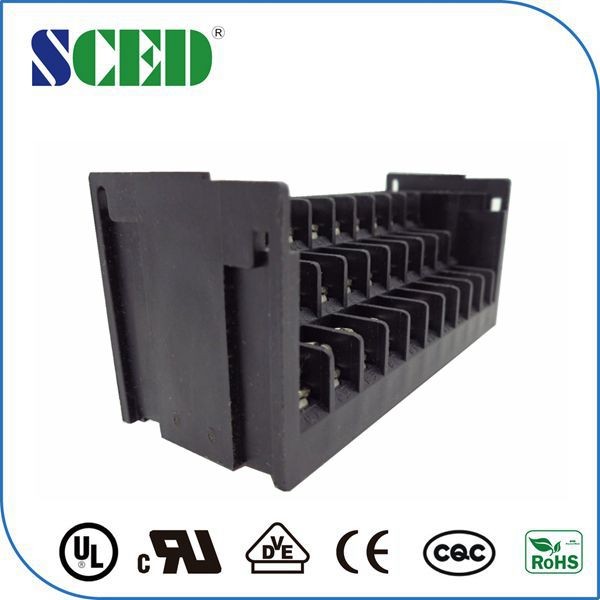

Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Name: Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 762mm
Brand: SCED
Price: 1 USD

Wholesale Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm from china suppliers

Brand Name : SCED

Model Number : TB762-03

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, A

Color : Black

Number of Contacts : 10*3P

Pitch : 7.62mm

Rated Current : 15A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 14-22 AWG

Contact Now

Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Quick Detail:

Type: Barrier Screw

Pitch: 7.62mm

Rated voltage: 300V

Rated Current: 15A

Wire range: 14-22 AWG

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

Description:

■Right angle wire inlet;
■Triple levels

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15		300/10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Drawing and Photos
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:
Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm

Detail Photos:

Triple Level Barrier Terminal Block Connector 10 Pin Electric Connector 7.62mm
