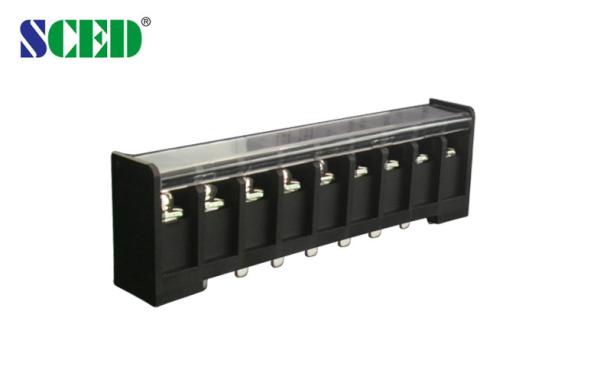

Plastic Cover Black Brass Barrier Terminal Block 600V 57A 17mm Pitch

Name: Plastic Cover Black Brass Barrier Terminal Block 600V 57A 17mm Pitch
Brand: SCED
Price: 2.1 USD

Wholesale Plastic Cover Black Brass Barrier Terminal Block 600V 57A 17mm Pitch from china suppliers

Brand Name : SCED

Model Number : TB1450a-06-C

Certification : UL,CE,CUL,CQC,VDE etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 2.1-4.2 Per PCS

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm

Pitch : 17mm

Poles : 9 poles

Color : Black

Voltage : 600V

Current : 57A

Screw : M5

Stripping Length : 12-16mm

Torque : 18-20 lbf.in

Wire Range : 20-6 AWG

Insulation Material : PBT

Contact Now

Black Brass Barrier Terminal Block with Plastic Cover 600V 57A 17mm Pitch

Detailed product Description:

Pitch 17.00mm, 600V 57A, 9P, Barrier Terminal Blocks, Power Terminal Blocks

Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

Frequency Converters, Server Site, PCB, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment, Military etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 57	600 / 57	600 / 5
Wire Range AWG	20-6	20-6	20-6
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 57	1000 / 57	1000 / 57
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	10
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	2.4x5.4
Stripping Length mm	12-16
Screw / Torque / lbf.in	M 5 / 18-20

Competitive Advantage:

Full range of products for selection
Flexible to design the exact part per customers’ demand
Stable high quality
Competitive price
CE,UL, CUL, CQC and VDE etc.
