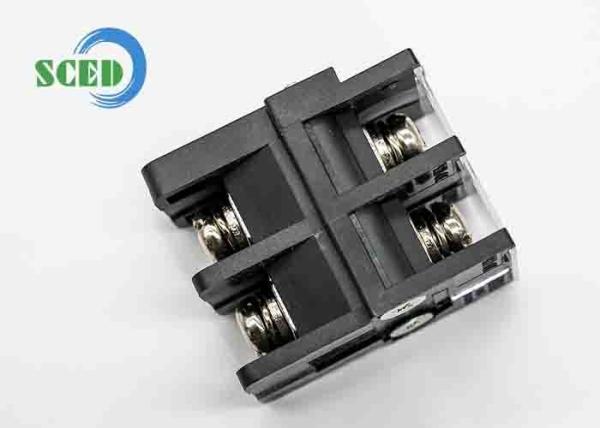

101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm

  • 1
  • 2

Brand Name : SCED

Model Number : TD75-02-C

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 200

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 16.0mm

Rated Current : 101A

Rated Voltage : 300V

Type : Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors

Wire Range : 2-10

Contact Now

101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm


■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors


How to order:
101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 101

300 / 10

Wire Range AWG

2-10

2-10

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 101

400 / 101

630 / 101

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

25

Material

Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

12-13

Screw / Torque / lbf.in

M6 / 20-22



101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
